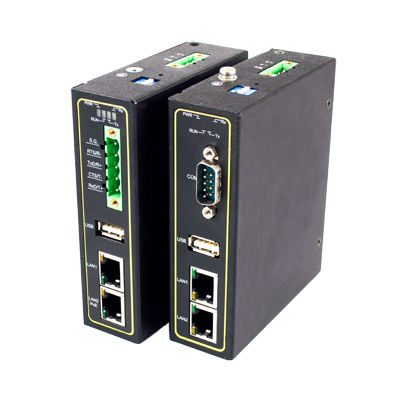

Industrial gateway PG5901 Series

EthernetModbusRS232

1-Port RS232/485/422 and 2 x Fast-Ethernet RJ45 DNP3.0, Modbus, IEC 60870-5-101/103/104, IEC 61850 Smart Grid Protocol Gateway • - Dual 10/100 Mbps Ethernet port, Optional 802.3af PoE PD capable • - 1-port RS-232/422/485, baud rate up to 921.6 Kbps • - IP30 Metal housing with Aluminum heat sink • - Strong EMC protection, works in environments from -40 to 85°C • - Same hardware platform for different protocol conversion (Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850) • - User friendly configuration with a Java-Based Windows utility • - Embedded IPsec, PPTP and OpenVPN for enhanced security • - Redundancy through embedded RSTP Protocol Product Description The PG5901 Series is a highly reliable and fault tolerant Industrial Protocol Gateway. Its powerful architecture provides seamless conversion between the different protocols Ethernet or Serial based. The serial devices communicating on different protocols could be integrated into the system and extend its reach over the gateway’s redundant Ethernet. This device is designed to work in most demanding industries such as power substations, power generation, oil and gas, farming and manufacturing. The configuration carried out through a user friendly, Java- Based Windows Utility called eNode Designer. It allows configuring target platforms, set device properties and protocol data point mapping. To do so, a project file representing the system should be created. This will include devices and the protocol applications running on them.
