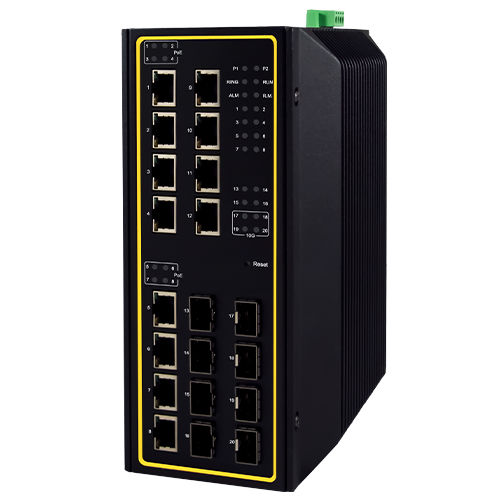

Managed ethernet switch EHG7620 Series

20 portsgigabit Ethernetgigabit

20-Port High-Bandwidth Industrial Managed Layer-3 Gigabit PoE Switch • - Up to 16 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots. Plus 4 dedicated 1/10G Uplink SFP slots • - Up to 8x 802.3af/ 802.3at PoE/PoE+ Power over Ethernet ports, with maximum 30W PoE power per port and up to 240W power budget. • - Powerful Layer-3 Switching, supporting IPv4 Static, RIPv1/v2 and OSPFv2 • - Redundancy through ITU-T G.8032 ERPS Ring, RSTP, STP, MRP (Manager/ Client), compatible rings and compatible chains. • - UL 62368-1:2014, CE/FCC, NEMA TS-2 certified for traffic control • - Wide temperature operations, from -40°C to 70°C • - IEEE 1588v2 Precision Time Protocol Hardware-Based End-to-End TC Designed to be adaptive, with unprecedented throughput: Atop’s EHG7620 Series offers several different versions making it a very flexible product based on your specific needs for Layer-3 Switching. No matter the version, this device offers 4 x 1/10 Gigabit Ethernet SFP uplinks making it a cost-effective, reliable industrial solution where high-throughput and high-reliability is fundamental. Layer-3 routing support IPv4 static routing, RIP v1/v2 and OSPFv2. Designed for PoE, in wide temperature: EHG7620 supports up to 20 Gigabit ports in different configurations, either Copper, PoE or Fiber, any 8-port multiple configuration. Specifically designed for bringing power through Ethernet cable virtually anywhere, a maximum output Power over Ethernet of 240W over a maximum of 8 PoE/PoE+ ports is allowed (802.3af/at).
