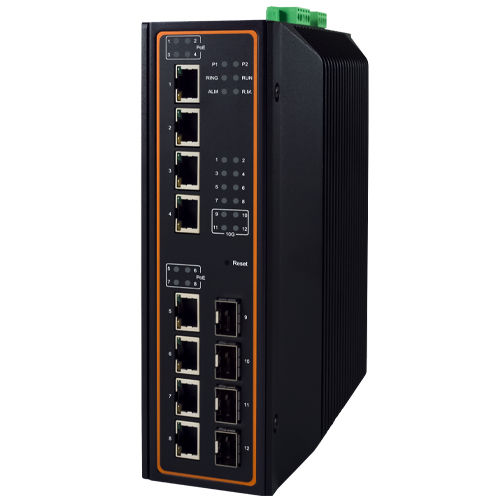

Managed ethernet switch EHG7512 Series

12 portsgigabit Ethernetgigabit

12-Port High-Bandwidth Industrial Managed Gigabit PoE Switch • - Up to 8 10/100/1000 RJ45 ports or 4 10/100/1000 RJ45 ports and 4 100/1000 BASE-X SFP slots. Plus 4 dedicated 1/10G Uplink SFP slots • - Up to 8x 802.3af/ 802.3at PoE/PoE+ Power over Ethernet ports, with maximum 30W PoE power per port and up to 240W power budget • - 128 Gbps High-Performance non-blocking Switching Fabric • - Redundancy through ITU-T G.8032 ERPS Ring, RSTP, STP, MRP (Client) • - IEEE 1588v2 Precision Time Protocol HW-Based E2E Transparent clock • - Wide temperature operations, from -40°C to 70°C • - UL 62368-1:2014, CE/FCC, NEMA TS-2 certified for traffic control applications • - DNV-GL Marine Application • - Security features based on IEC62443-4-2 Designed to be adaptive, with unprecedented throughput: Atop’s EHG7512 Series offers 24 different versions and 24 making it a very flexible product based on your specific needs. No matter if the 12 port version, this device offers 4 x 1/10 Gigabit Ethernet SFP uplinks making it a cost-effective, reliable industrial solution where high-throughput and high-reliability is fundamental. Designed for PoE, in wide temperature: EHG7512 supports up to 20 Gigabit ports in different configurations, either Copper, PoE or Fiber, any 8-port multiple configuration. Specifically designed for bringing power through Ethernet cable virtually anywhere, a maximum output Power over Ethernet of 240W over a maximum of 8 PoE/PoE+ ports is allowed (802.3af/at). Rugged, Wide-Temperature, Well protected design: EHG7512 is EN61000-6-2, EN61000-6-4, IEC/EN/UL62368-1:2014 and FCC certified certified and is designed to withstand the harshest environments and the most demanding EMC environment.
