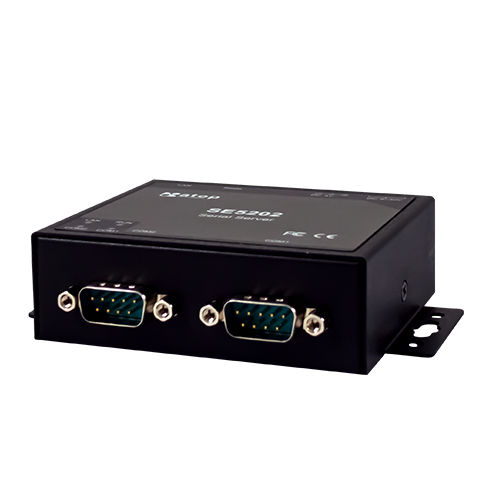

Serial device server SE5202 Series

RS-232EthernetRJ45

Compact 2-Port Industrial Serial Device Server, Field-Mount • - 2 x software-selectable RS-232/485/422 port • - 1 x 10/100Mbps RJ45 Fast Ethernet port or 100Mbps SFP Slot • - Supports TCP server/client, UDP, Virtual COM and Tunneling modes • - Configuration via Web Server page, Telnet Console, and Windows Utility • - Integrated SNMPv1/v2c/v3, HTTPS, Telnet and SSH configuration • - Upgradable firmware via Ethernet from a remote-PC • - Rugged metal casing; industrial EMC protection • - Redundant dual DC power inputs for non-stop operation • - Optional DIN-Rail mounting Despite Ethernet having become the new backbone standard of Industrial Automation, Serial devices still remain highly relevant today, with numerous devices installed on sites worldwide. So with ATOP’s SE5202 Series, you can transform any serial device into an Ethernet-capable one, allowing you to control and monitor your legacy serial devices via your LAN or WAN – or even over the internet. With such connectivity, the amount of time required to configure or troubleshoot a serial device located on a factory floor or in a remote location is eliminated. And with such Ethernet-based connectivity, serial devices can be integrated into modern practices such as Industry 4.0 and IIoT, allowing you to extend their lifetime and avoid wholesale device upgrades in the near future. Featuring 2 x software-selectable Serial Port and 1 x RJ45 Port or SFP Slot, the SE5202 Series is a simple-to-install device, with easy configurations options such as Telnet, Web browser, or other Windows utilities.
