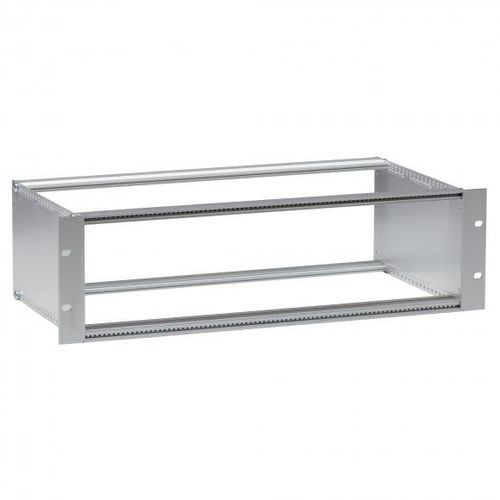

Universal subrack CUBIC

busindustrialfor DIN 41612 connector

Development of the CUBIC range Universal subrack for bus or DIN 41612 connectors. Includes: 2 side flanges 2 front beams 2 front brackets 2 rear beams 4 threaded bars The fitting of a bus requires the addition of offset spacers. The fitting of DIN 41612 connectors requires the addition of connector holders. In profile and sheet aluminium. (RoHS). General treatment: Colourless anodisation and colourless conductive passivation (RoHS). Industrial electronics Following DIN 41494, IEC 60297-3 standards. Europe Single Format = 100 mm Europe Double Format = 233.35 mm High modularity allowing multiple configurations Strength Economical range 3U and 6U subracks 6U 2x3U subracks 6U 2x3U mixed subracks Mixed offset kits Kit for horizontal mounting Subrack 3U depth 50 Subrack 3U depth 115 with DIN rai Card guide Swivelling, flap door Extension Shielding Rear panel Subrack delivered mounted, possible configuration on request equipped with: Faces, card-holders, miscellaneous items, wiring. Various treatments and finishes possible. Customisation possible by screen print, engraving, etc.
