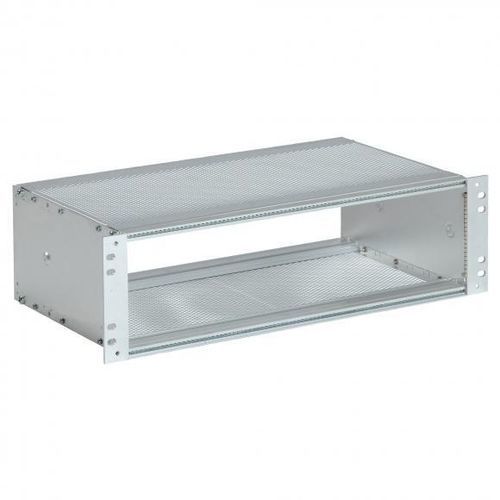

Aluminum profile subrack

for railway applicationsbusfor DIN 41612 connector

Development of EUROFER and ECORAIL ranges 2 side flanges 2 front beams 2 front brackets 2 rear beams 4 threaded bars Base subrack Extension Kit In profile and sheet aluminium. General treatment: Colourless conductive passivation (RoHS). Railways (developed in collaboration with SNCF in particular). Following IEC 60297-3, DIN 41494, 50155 EN standards, SNCF 047171 Authorisation, IEEE 1101.10 and 11 Europe Single Format = 100 mm Europe Double Format = 233.35 mm High modularity allowing multiple configurations Mechanical strength (tested according to EN61373) Economical range Electrical continuity of all elements between themselves, resistance to corrosion VME, CME64x, CPCI Bus compatible Basic subracks and pluggable drawers EMC versions EMC-IEEE versions Kit for subdivision of 6U 2x3U Kit for subdivision of 6U into 6U + 2x3U Basic subracks and pluggable drawers EMC versions EMC-IEEE versions Kit for subdivision of 6U 2x3U Kit for subdivision of 6U into 6U + 2x3U
