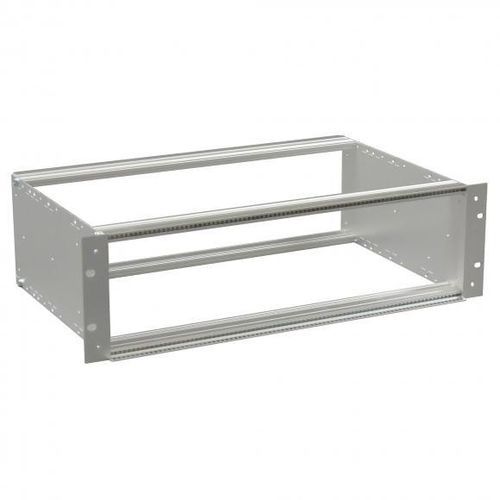

Bus subrack EMC-IEEE Series

industrialpreconfiguredcustom

Development of Hyperrack and Hyperrack.10 ranges Subrack that can meet the EMC and/or IEEE constraints. Preconfigured subrack for front only plug-in Preconfigured subrack for front and back plug-in Subrack according to custom configuration The fitting of DIN 41612 connectors or a bus requires the addition of a kit. In profile and sheet aluminium. General treatment: Colourless conductive passivation (RoHS). Industrial electronics under EMC constraint, computers, instrumentation. Following IEC 60297-3, IEEE 1101.10 and 11 standards. EMC Attenuation Tests carried out according to the standard GAM T20 ED.92. Europe Single Format = 100 mm. Europe Double Format = 233.35 mm. High modularity allowing multiple configurations Strength Level of EMC shielding configurable and feasible to retrofit Electrical continuity of all elements between themselves VME, CME64x, CPCI Bus compatible Adaptable for plug-in configuration Front and Front + Rear 3U and 6U subracks 6U 2x3U subracks 6U 2x3U mixed subracks Mixed offset kits Kit for horizontal mounting Kit for remote mounting ACCESSORIES Card guide Swivelling, flap door EMC rear panel Subrack delivered mounted, possible configuration on request equipped with: Faces, card-holders, miscellaneous items, wiring. Various treatments and finishes possible. Customisation possible by screen print, engraving, etc...
