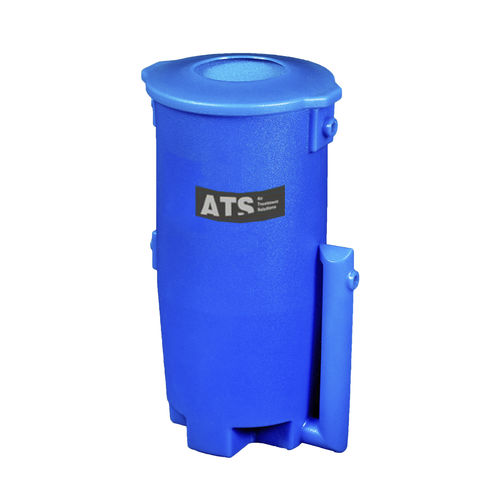

Centrifugal separator OWS gold series
watercondensateoil

Centrifugal separator - OWS gold series - ATS - water / condensate / oil
Centrifugal separator - OWS gold series - ATS - water / condensate / oil
Centrifugal separator - OWS gold series - ATS - water / condensate / oil - image - 2
Centrifugal separator - OWS gold series - ATS - water / condensate / oil - image - 3
Centrifugal separator - OWS gold series - ATS - water / condensate / oil - image - 4
Centrifugal separator - OWS gold series - ATS - water / condensate / oil - image - 5
Centrifugal separator - OWS gold series - ATS - water / condensate / oil - image - 6
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Separated substance
oil, water, condensate
Application domain
process
Other characteristics
high-efficiency
Flow

Max.: 3,600 m³/h
(127,132.8 ft³/h)

Min.: 170 m³/h
(6,003.493 ft³/h)

Weight

Max.: 67 kg
(147.71 lb)

Min.: 5 kg
(11.02 lb)

Description

DATA REFER TO THE FOLLOWING NOMINAL CONDITIONS • ambient temperature: 25°C • inlet air pressure: 7 barg Consider to oversize the separators if ambient temperature and humidity are higher than nominal ones. Nominal data considered for screw compressors. ATS offers wide range of solutions which, by working together in perfect harmony, ensure a compressed air perfectly free from condensate, oil and other impurities. High efficiency, reduced downtime/maintenance costs and improved quality product to meet individual customers’ needs. Advanced patented technologies ensuring the most energy efficient solution. Condensate treatment During the standard function, compressors produce huge quantities of condense contaminated by oil. This liquid cannot be discharged in the outdoors and has to be treated by a specialized company in order to protect the environment. ATS developed the Gold series of oil water separators OWS, which remove oil contaminants from the condensate, in order to discharge the water directly in the drainage. This is not a normal oil water separator: no decantation tank; no external tank to collect oil; simple, fast and effective condensate treatment. The unique advanced design and bag material of high quality , assure an extreme level of filtration.
