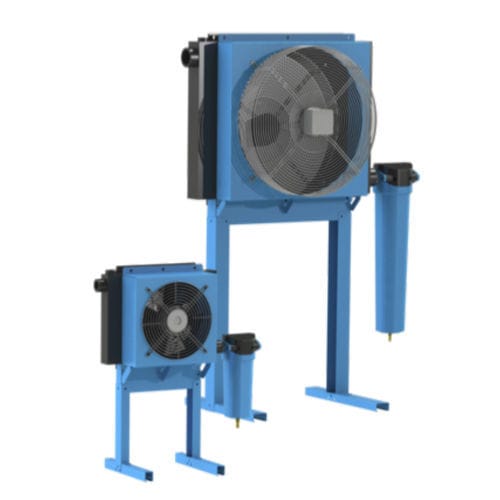

Compressed air aftercooler ECA series

industrial

Data refer to the following nominal conditions • Ambient temperature: 25°C • Inlet air pressure: 7 barg This range of air cooled - after cooler uses a high-efficiency aluminium cooler rather than to the classic coil copper pipes normally used by other manufactured. The aluminium cooler combined with the electrical fan ensures a reduction on the inlet temperature with a Delta T of 5° C from ambient temperature. Pressure drop are irrelevant and the condensate formed is discharged through the high-efficiency condenser separator connected to the outlet of the aluminium cooler. Available options: • Non-standard voltages: ECA 78-628 available with V 115/1/60. • ECA 940-3700 available with V 230/1/50-60 or V 400/3/50-60. • ECA 940-3700 available with V 460/3/60. • Connections: ECA 78-2800 available with NPT connections. • ECA 3100-3700 available with ANSI connections. • All models are available also without separator, motor or frame • ECA 450-3700 available with pneumatic motor
