Car brake tester ARENA L 335 PRO

roller

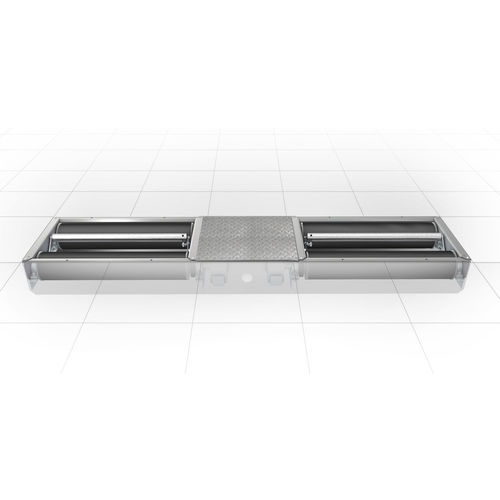

ARENA L 335 PRO The roller brake tester for passenger cars, light commercial vehicles mobile homes and overwidth trailers ARENA L 335 PRO The roller brake tester for passenger cars, light commercial vehicles, mobile homes and overwidth trailers Part Nr.: 01011016A - 5 t axle load, 8 kN brake force - Single-piece galvanized roller set, including middle cover plates - Electronic measuring system with strain gauges - Automatic switching on and restarting, - Start-up protection for braked rollers - Big display and control cabinet for wall mounting - 2 big scaled indicators for the braking values, (diameter 350 mm) - Signal lamps for the slip values and for exceeding the maximum brake force difference, automatic lamp - Splash-proof motors (IP54) - Easy drive-off by self-locking worm gear box - Rollerset with premium plastic corundum coating - Length of the cable set 15 m - Extendable to a complete test lane Included in the scope of delivery: - Wall mounting bracket, swivelling - Cover plates, galvanized - Automatic 4 wheel drive recognition - Wireless remote control Option: Brake tester extendable to a complete test lane. Technical data: Permissable axle weight (t) 5 Roller surface plastic curundum Measuring range (kN) 8 Testing width (mm) 800-2.800 Indicating range (kN) 8 Motor power (kW) 2 x 4,0 Testing speed (km/h) 5 Cabinet dimensions (mm) 900 x 580 x 275 Roller diameter (mm) 204 Roller length (mm) 1.000 Roller set dimensions (mm) 2.932 x 668 x 265
