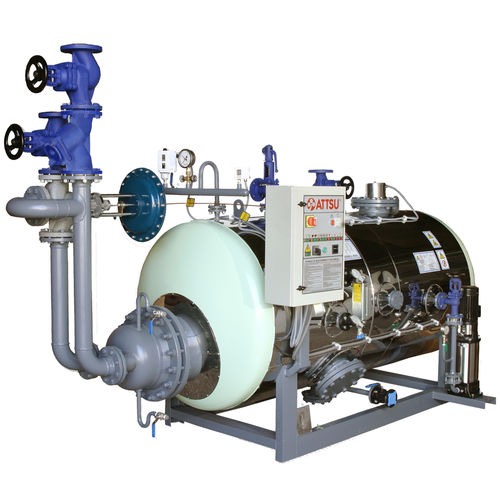

Vaporizer V

the V vaporizer is designed as an exchange basis for the production of medium pressure steam from steam at higher pressure or thermal oil. The heating is done through two exchanger tube bundles of stainless steel or carbon steel mounting a plate of the same material. The body is cylindrical, dished type topped by Klopper and the materials used in both elements can be stainless steel AISI 304 L, AISI 316L or carbon steel. It provides a low heat loss from radiation thanks to the insulation of great thickness as well as front and back door insulation. Thermal insulation is composed by a thick layer of low conductivity and high density material, covered by a stainless steel metallic enclosure. The boiler could be optionally equipped with PLC including different communication protocols such as Modbus, Profibus, etc., enabling boiler integration in any industrial process. This boiler is certified in accordance with European Directive 2014/68/UE.and optionally could be certified according to ASME, BS, DNV, EAC, DOSH, JIS and others.
