LED analyser RGB

uniformity for luminance and chromaticitywavelengthtemperature

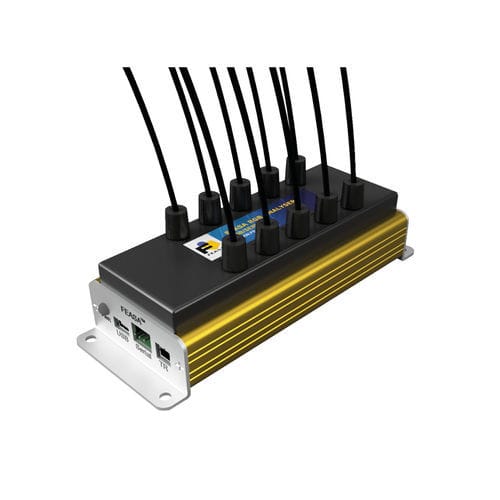

The Feasa RGB LED Analyser was developed for the measurement of RGB LEDs, RGB LED backlight switches and panels where the light penetrates through etched or painted plastic panelling, such as in car dashboards. This analyser checks the intensity, homogeneity, xy chromaticity, dominant wavelength and CCT accurately, reliably and quickly. The RGB LED Analyser is available in configurations with 3, 5, 6 and 10 channels. Each channel fibre has a length of 0.6 m, the fibre has a diameter of 2.2 mm, including sheath and a bending radius of 50 mm. Operation from a luminance of 0.5 cd/m² and a maximum luminance of 1,000 cd/m² and a temperature of 0-50 °C. Accuracy of ± 0.01 @ x=0.33, y=0.33 for monochromatic and RGB colours, with a repeatability of ± 0.002 and < 1% of intensity. The interfaces for this are USB, serial and daisy chain. SOFTWARE: Setup software supplied, command line interface C, C++, DLL, supports Labview
