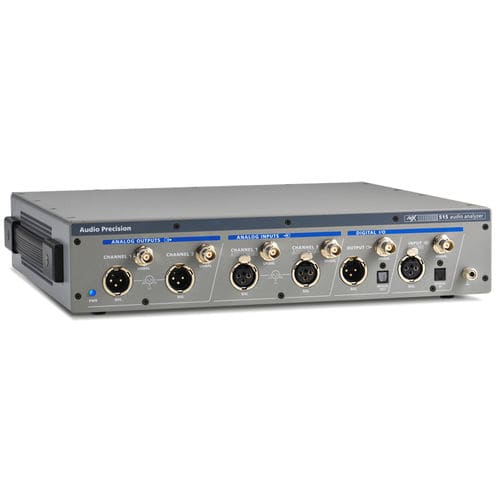

Laboratory analyzer APx515 series

audiobenchtophigh-performance

The APx515 is a high performance audio analyzer optimized for production test. APx515 has a typical THD+N of –106 dB, a 1.2M point FFT with 24-bit resolution, and up to 216k digital I/O. It is a best-in-class instrument for its combination of speed, performance, automation, and ease-of-use. APx515 is a significant product because it delivers the performance and reliability of Audio Precision at a production-level price. APx is the fastest audio analyzer in the world, returning 21 audio measurements in as fast as 1.2 seconds. It is also the easiest to use, with one-click measurements, custom reporting and sophisticated automation without any programming. A full API and LabVIEW driver is also provided. This speed and ease-of-use means test will never be a bottleneck, and production line managers can achieve reliable, consistent results compared to the current low-cost alternatives like a distortion analyzer. For companies outsourcing their production, requiring APx515 on the production line gives tighter control over production, ensuring manufacturers are meeting their contractual requirements.
