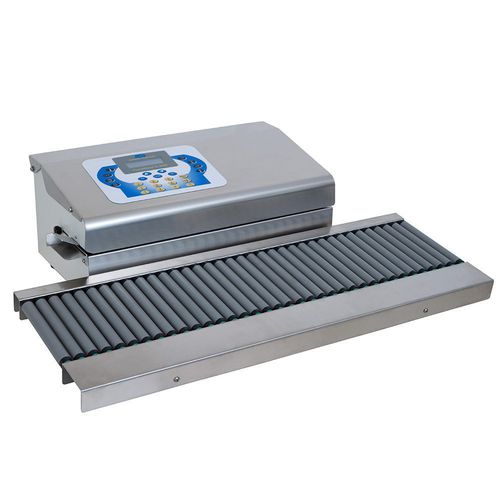

Continuous heat sealer D 666 MPCV

automaticsemi-automaticpackaging

Validation, Traceability, Printing - all-in-one! This validatable rotary heatsealer consistently seals multi-layered sterilization pouches like paper/PP, aluminium/PE, pre-formed sterile barrier systems and uncoated Tyvek® (not suitable for single plastic films like PE, PP). The 15 mm multiline seal is fully monitored and controlled on seal temperature, seal speed and seal force (alarm stop). Throughput 10 mtr/minute. The integrated alarm-function operates with a temperature accuracy of ± 1%, compliant to sealing requirements of EN 868-5, DIN 58953-7. The integrated 9 dots matrix printer provides the pouches with required production data like date, expiry, operator, batch code, seal temp, seal force, seal speed and pouch ID. Optionally an extra label printer can be connected, operating simultaneously. A USB port facilitates process data to be stored and processed. The D 666 MPCV fully complies to the validation requirements of ISO 11607-2 and the corresponding guidelines ISO/TS 16775. Its operation and simple set-up (through an easy-to-read digital display and membrane keypad) require only minimal operator training to pack any product safely, quickly and reliably. To sum up: Validatable - Full control of all critical process parameters Integrated printer & USB-port Ideal for both delicate and heavy-duty packaging operations Alarm stop - Tolerance +/-5°C
