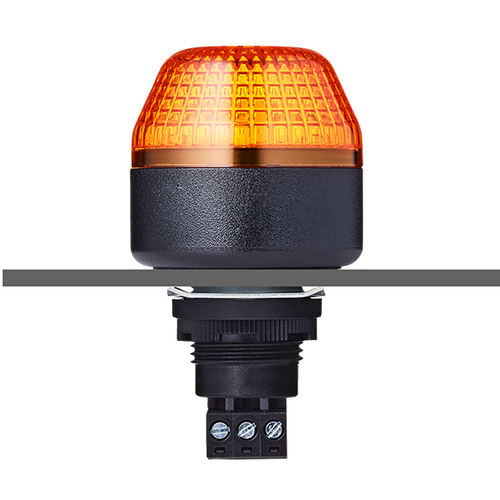

Strobe beacon IC series

LEDIP65

Series M22 - the Installable The most comprehensive M22 built-in signal device series is available in three sizes: Ø 30 mm, Ø 45 mm und Ø 65 mm. The high luminosity and signal effect is seen frontally and laterally due to the calotte. The luminaire is particularly durable and vibration-resistant, with a high degree of protection of IP65 and IP67 for prewired models. The M22 series buzzer, the loudest installation buzzer available on the market, is available as an add-on for the installation series. The high sound pressure level (max. 100 dB) is mostly infinitely variable. Luminaire models with LED technology can be upgraded to an optical-acoustic combination with the piezo buzzer. Sound and light can be synchronised or separately controlled IC M22 panel mount LED multi strobe beacon: - Ø 45 mm panel-mount LED multi-strobe beacon - Good signalling effect - High degree of protection IP 65 - User-friendly connection technology thanks to plug-in screw terminal - Prewired model versions with IP 67 on request - Modern LED technology and electronics - 2 different strobe patterns, can be switched externally - For industrial and general applications - Panel size Ø 22.5 mm/M22 - Adapter available for M30.5 mm panel size
