MINI EXCAVATORS
3 - 5 T

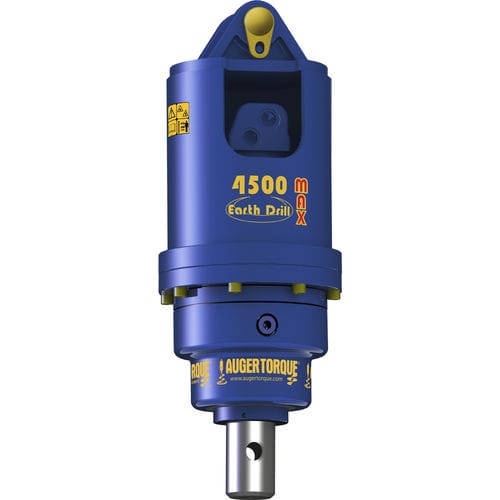

S4 AUGERS
100mm-900mm Dia
Torque Range: 1,500-4,499 Nm
Oil Pressure Range: 80-240 Bar
Oil Flow Range: 50-95 lpm
Speed Range: 43-81 rpm
Unit Height: 665mm
Unit Diameter: 244mm
Unit Weight: 75 kg
Hitch Options: Single Pin Hitch
Double Pin Hitch
Cradle Hitch
Output Shaft Std: 65mm Round
Output Shaft Opt: 2” Hex
57mm Square
