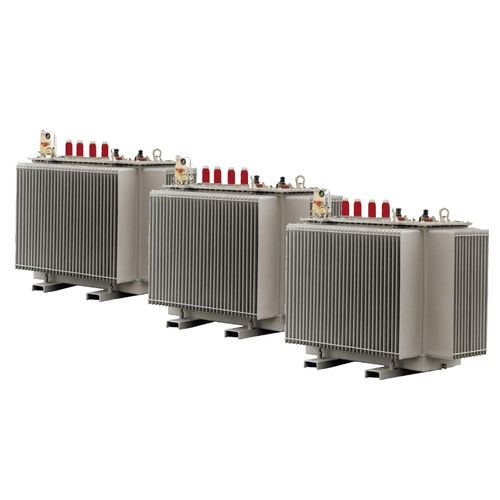

Oil-filled transformer electrical power supplyimmersedfor lighting
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Configuration
- immersed
- Applications
- for lighting, for lamps
- Electrical characteristics
- single-phase, three-phase
- Mounting
- pad-mount
- Norms
- IEC
- Other characteristics
- oil-filled, oil-insulated
- Secondary voltage
3,200 V, 5,500 V
- Primary current
250 A
Description
Specially designed transformer for lamp supplying conform to recommendations of NF C 17-200 standard.
• ACCORDING IEC 60076 & NF C 17-200 STANDARDS
• ACCORDING TO UE 548/2014 EUROPEAN DIRECTIVE
• HERMETICALLY SEALED TRANSFORMER
• DESIGNED TO SUPPLY DISCHARGE LAMP
• ROBUST TRANSFORMER LONG SERVICE LIFE
Power rating
From 100 to 1250 kVA
COUPLINGS
> Standard : Three-phase transformer TTHI : Step-down transformer Dyn11 - Step-up transformer YNd1
> Specific : Tri-mono transformer TTMHI, tri-bi Leblanc transformer TTBHI, other couplings on request
PRIMARY AND SECONDARY CONNECTIONS
> Plug-in bushing bars fix part 250 A HN 52 S61.
STANDARD ACCESSORIES
> Filling tap and draining valves - rollers - earthin gterminals - liftinglugs
> Protection unit DGPT2 - Voltage tapping adjustable out of voltage (+- 2,5 + 5 + 7,5 + 10 % for step down transformer, +- 2.5 +- 5 % for step up transformer).
