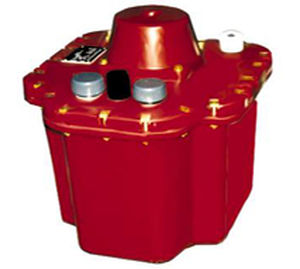

Distribution transformer TED seriescast resinthree-phasefloor-standing
Add to favorites
Compare this product
Characteristics
- Type
- distribution
- Configuration
- cast resin
- Electrical characteristics
- three-phase
- Mounting
- floor-standing
- Other characteristics
- epoxy resin
- Electric power
Min.: 0.05 kVA
(0.068 hp)Max.: 50 kVA
(67.9811 hp)
Description
The use of epoxy guarantee the following characteristics :
- Corrosion resistant ,remain unaltered over time
- Water tight and immersible
- Insulated
- Can be buried into purposely pits
Specifications :
* IP : IP 68 - IK 10
* Temperature : -15°C to 40°C
* Nominal power :
o Single phase from 400VA to 50 kVA
o Three-phase from 50VA to 32 kVA
* Primary insulation voltage : 7,2 kV
* Secondary insulation voltage : 1,1 kV
* Standards : NFC 52410
Catalogs
No catalogs are available for this product.
See all of Augier‘s catalogs
