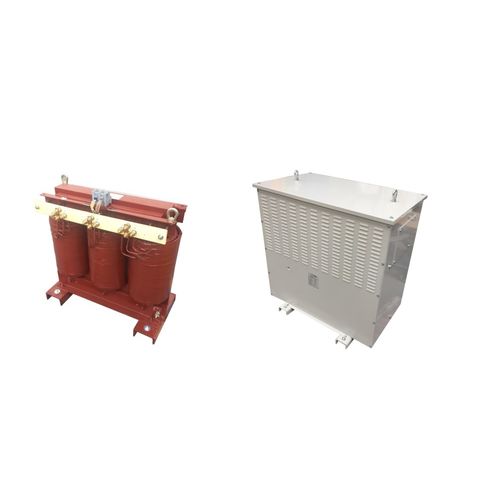

Distribution transformer drythree-phasepad-mount
Add to favorites
Compare this product
Characteristics
- Type
- distribution
- Configuration
- dry
- Electrical characteristics
- three-phase
- Mounting
- pad-mount
- Electric power
Max.: 630 kVA
(856.5613 hp)Min.: 25 kVA
(33.9905 hp)- Primary voltage
Max.: 6,600 V
Min.: 3,200 V
- Secondary voltage
Max.: 410 V
Min.: 237 V
Description
Oriented crystal plate magnetic circuits, low loss. Copper or aluminium windings, varnish impregnated.
* Protection : Optional IP31
* Temperature : For use in dry, ventilated rooms, room temperature = 40°C
* Power : 25-50-100-160-250-400-630kVA
* Primary voltage : 3200-5500-6600 V
* Primary insulation voltage : 7,2 kV
* Secondary voltage : 237 V - 410 V
* Secondary insulation voltage : 1,1 kV
* Coupling : All possible types
o Three-phase / Three-phase
o Three-phase / Two-phase
o Three-phase / Single-phase
o Single-phase / Single-phase
* Compliance standards : UTE C 52100 - IEC 76
