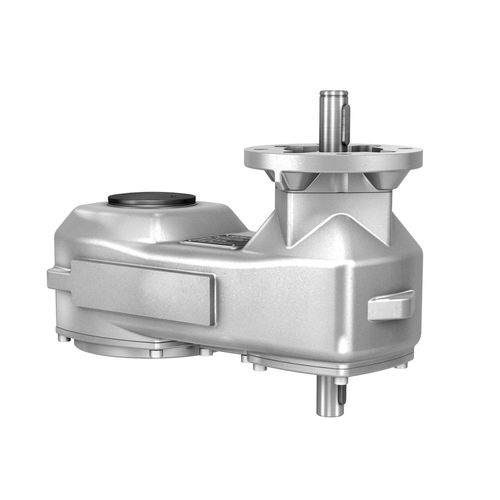

Planetary gear reducer GST seriesspurright anglehollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, spur
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- > 10 kNm
- Applications
- drive, shaft, for valves
- Other characteristics
- stainless steel, manual, multi-turn
Description
If the drive shaft is to be positioned at a certain angle to the output drive shaft, combinations of the multi-turn actuators SA with AUMA spur gearboxes GST are used.
The output torque can be increased many times.
Design features
Planetary spur gearboxes for torques up to 16,000 Nm
Lifetime according to EN 15714-2
Valve attachment according to EN ISO 5210
Suitable for manual and electrical operation
Ambient conditions
Suitable for ambient temperatures –40°C to +80°C
Top quality corrosion protection with AUMA powder coating
Stainless steel input shaft
IP68
Options
Square for input shaft (adapter)
With stem nut for use as screw jack
Stem protection tube Position and end position signalling during manual operation
With second shaft end with or without protective cap
ATEX approval
High and low temperature version
