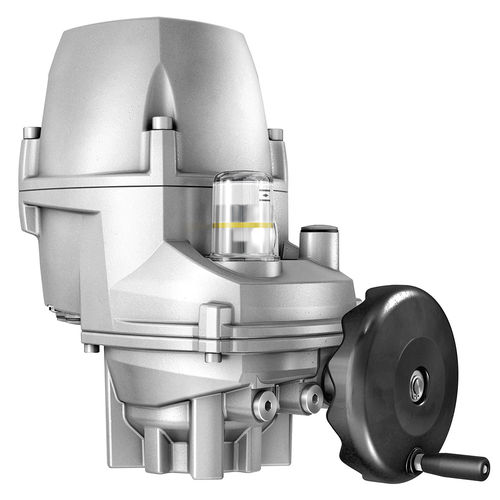

Electric valve actuator PROFOX PF-M seriesmanualmulti-turnpart-turn
Add to favorites
Compare this product
Characteristics
- Type
- electric, manual
- Movement
- multi-turn, part-turn
- Protection class
- IP68, IP67
- Other characteristics
- compact, ball, modulating
- Torque
Max.: 100 Nm
(73.76 ft.lb)Min.: 10 Nm
(7.38 ft.lb)- Rotational speed
Max.: 14 rpm
(87.96 rad.min-1)Min.: 1 rpm
(6.28 rad.min-1)- Ambient temperature
Max.: 70 °C
(158 °F)Min.: -30 °C
(-22 °F)
Description
One solution for butterfly, ball/plug and globe valves. Compact actuators with intelligent functions as platform concept for tailored automation solutions.
Each PROFOX is equipped with a centrally located LED: The FOX-EYE. It provides clearly visible information about both actuator and valve status. The FOX-EYE display scheme can be configured by the user as required.
Design features
Open-close duty and modulating duty
End position setting via push buttons or AUMA Assistant App
Limit and torque sensing
Handwheel for manual operation
Wide range power supply unit
Variable speed assuring premium control accuracy
Mechanical position indication in various setting ranges
(1 – 9 turns/stroke, 9 – 14 turns/stroke, 14 – 27 turns/stroke)
Ambient conditions
Large temperature range between –30 °C and +70 °C
Premium enclosure protection IP67, IP68
High grade corrosion protection up to C5-M/C5-I
Robust metal housing
