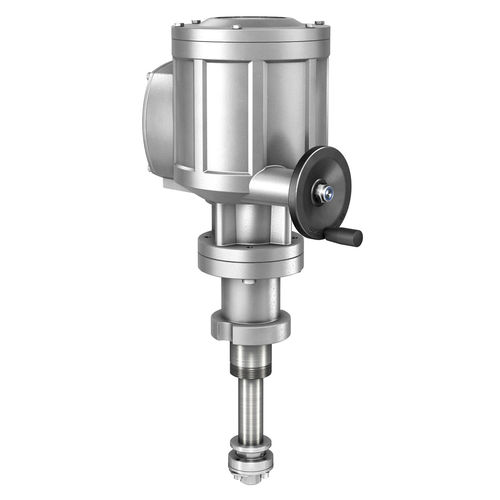

Linear valve actuator SDL / SDG series

electricmanualmulti-turn

Electronic actuators with variable speed control. Electronic setting of torque and stroke with function monitoring. Power supply unit with wide range Input. Actuator applications for demanding control automation tasks in industrial environments with potentially explosive atmospheres. Design features Sizes: 20 to 100 Running speeds: 1.8 mm/s - 4 mm/s Modulating duty with continuous modulating (class D) Servomotor technology for high positioning accuracy Wear-free absolute position measurement within the actuator Handwheel for manual operation Mechanical position indicator Ambient conditions High enclosure protection High quality corrosion protection Wide ambient temperature ranges Options I/O module for intermediate position switches Local controls Fieldbus control
