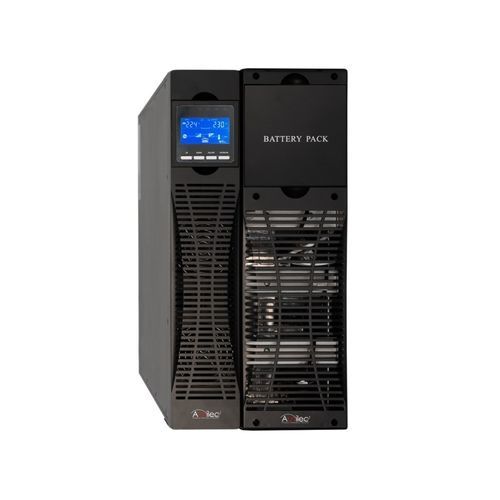

Parallel UPS IRIS-RTsingle-phaseACVRLA
Add to favorites
Compare this product
Characteristics
- Type
- parallel
- Electrical characteristics
- single-phase, AC
- Type of energy storage
- VRLA, AGM
- Other characteristics
- with LCD display, Eco mode, pure sine wave, redundant, with RS-232 interface, SNMP
- Applications
- industrial, for telecom applications, medical, server
- Configuration
- rack-mount, tower
- Output power kVA
6 kVA, 10 kVA
(8.157727 hp, 13.596212 hp)- Input voltage
Min.: 110 V
Max.: 300 V
- Output voltage
208 V, 220 V, 230 V, 240 V
- Power
6,000 W, 10,000 W
Description
The IRIS-RT Convertible Parallel Redundancy online UPS series, featured with up to 94.0% efficiency, rack/tower convertible, N+X ParalleI Redundancy DSP -controlled technology, high input & output power factors, superior input voltage window for energy saving, ECO mode, is an ideal solution to your server, bank, industrial equipment, IT equipment,, communication system and other networking equipment, which is demanding for a thorough protection.
Specifications
- Hot Swappable Battery
- High Output Power Factor at 1.0PF
- Low Input Current Distortion
- Green Concept design with Superior Input Voltage Window for Energy Saving
- Efficiency up to 94.0%
- Emergency Power Off
- Support Economic (ECO) Operation Mode
- Settable Battery Voltage
- Temperature-controlled Fan
- Matching Battery Pack
- Common Battery When UPS in Parallel Mode
- Versatile Communication Interfaces Available
- Cold Start
- Communication Software
- Settable Charge Current
- Optional Frequency Converter Mode Supported
- Transformer Module for Galvanic Isolation
Catalogs
Datasheet IRIS-RT 6-10
2 Pages
