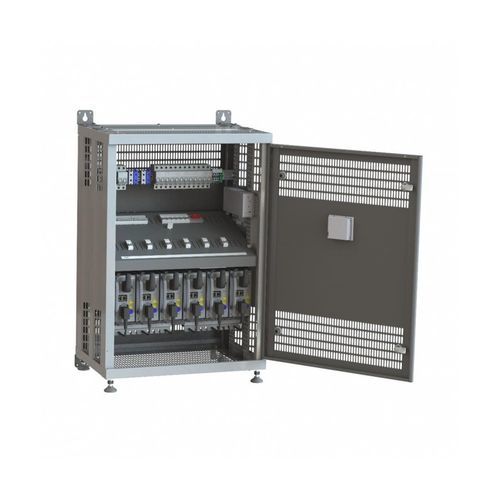

Parallel uninterruptible power supply AUPUS-OC0864
ACthree-phaseredundant

parallel uninterruptible power supply
parallel uninterruptible power supply
Add to favorites
Compare this product

Go to the AUNILEC website for more information

Characteristics

Type
parallel
Electrical characteristics
AC, three-phase
Other characteristics
redundant, with RS-232 interface, SNMP
Applications
industrial, for telecom applications, for railway
Configuration
wall-mounted
Certifications
IEC
Output power kVA

Max.: 12 kVA
(16.315454 hp)

Min.: 4.5 kVA
(6.118295 hp)

Input voltage

Max.: 300 V

Min.: 85 V

Output voltage

Max.: 220 V

Min.: 24 V

Power

Max.: 12,000 W

Min.: 4,500 W

Description

Robust backup power solutions AUPUS-OC0864 Power Systems are robust, free convection cooled, N+1 redundant backup power solutions for critical infrastructure applications such as transmission and distribution substations, process industries, railway signalling and telecommunications. Specifications - Efficiency up to 97% - Convection cooling – no fans - Flexible design with full front cabling - VIDI2 I/O controller, local and remote interfaces 12 x relays, Ethernet, Modbus, IEC61850, SNMP, RS-232 - Configurable load distribution - Configurable battery fuses and discharging test - Options: A+B parallel supply, IP21 roof, BLVD contactor, battery block voltage monitoring, inverters & DC/DC converters EMC: - Cabinet: EN61439-1, EN61439-2 - Rectifiers: EN 61000-6-1 / -2 / -3 / -4 / -5 - EN 50121-4 rail, ETSI EN 300386 (48/60V) Safety: - Cabinet: EN61439-1, EN61439-2 - Low voltage switchgear controlgear assemblies Rectifiers: - EN 62368-1, EN 50124-1 rail
