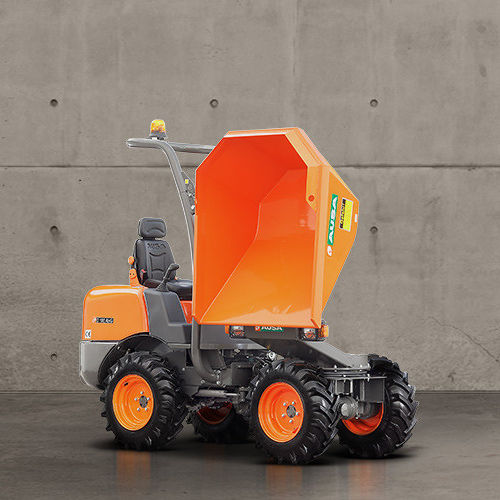

Rubber-tired dumper D100AHG

dieselswivel-skiparticulated-chassis

The D100AHG is part of AUSA's smallest range of dumpers, with a 1-ton (2,200 lbs) payload and a 180-degree swing skip. The small size of the D100AHG, which is only 1.10 metres (43 inches) wide, makes it suitable for minor construction work and work in difficult-to-reach areas such as narrow streets and parks. Its permanent 4x4 drive allows it to handle the toughest terrains. With its hydrostatic transmission, maximum comfort and safety are assured. Thanks to the transmission brake, it prevents the machine from moving under its own weight on slopes, without you even touching the brake pedal. Also, as there is no need to change gears, the driver can focus on the movements of the machine and its load. Technical data General Unloading system - Rotating Chassis - Articulated Water hopper capacity - 325 l Level hopper capacity - 390 l Heaped hopper capacity - 545 l Transmission - Hydrostatic Engine Brand - Kubota Model - D1105-E4B Power - 15.6 kW Torque - 71,4@1600 No. of cylinders - 3 Emissions - Stage V - EPA Tier 4 Noise level - 101 dB(A) Driving Max. speed - 15 Km/h Maximum gradient - 38 % External turning radius - 3035 mm Traction - 4x4 Tyres - 27x8.5-15 Hydraulic system Main pump - 8 cc gear pumps Hydraulic circuit - 17.3 l/min Working pressure - 180 bar Deposit capacity Fuel - 23 l Hydraulic system - 21.2 l Brakes Service - Mechanical, sealed, multi-disc Parking - Mechanical, sealed, multi-disc
