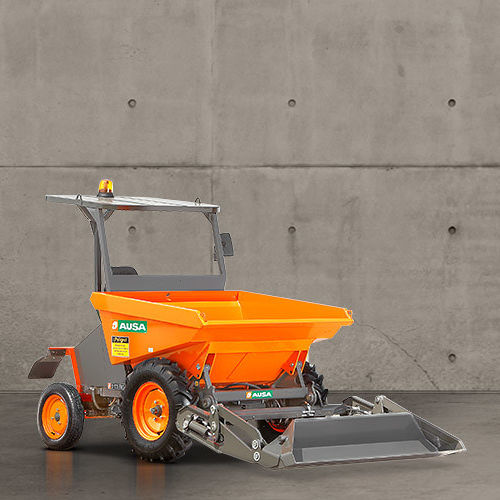

Rubber-tired dumper D175RMS

dieselfront-loadingself-loading

Powerful and inexpensive, the D175RMS features a self-loading shovel at the front of the machine. With a 1.75-ton (3,850 lbs) payload and front tipping, it is suitable for minor civil engineering projects and agricultural applications. Additionally, because it is highly durable and inexpensive to maintain, it is a great option. This rigid-chassis model is available with 4x2 and 4x4 FullGrip© drivetrain and has outstanding maneuverability and stability on uneven terrains. Technical data General Unloading system - Frontal Chassis - Rigid Water hopper capacity - 608 l Level hopper capacity - 868 l Heaped hopper capacity - 1047 l Transmission - Mechanical Engine Brand - Hatz Model - 1D90Z Power - 10 kW Torque - 43@2000 No. of cylinders - 1 Emissions - Stage V Noise level - 99 dB(A) Driving Max. speed - 21 Km/h Maximum gradient - 22 % External turning radius - 3470 mm Traction - 4x2/4x4 Tyres - 7.50-16 / 145/80 R13 Hydraulic system Main pump - - Hydraulic circuit - 20 l/min Working pressure - 120 bar Deposit capacity Fuel - 13.5 l Hydraulic system - 16.5 l Brakes Service - Drum, hydraulically actuated Parking - Mechanical, on front axle
