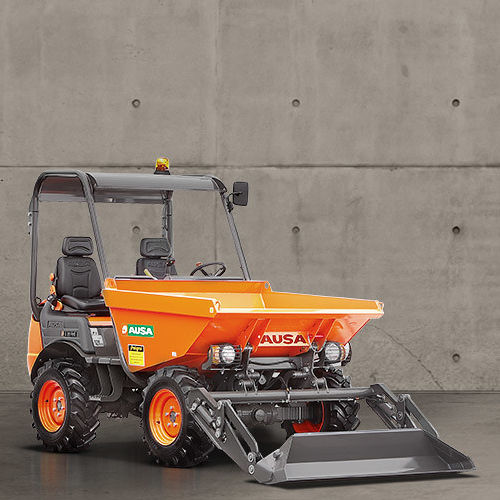

Rubber-tired dumper D201RHS

dieselfront-loadingself-loading

The most advanced compact rigid dumper. Flexible, powerful, easy to operate and inexpensive to maintain. With a 2-ton (4,400 lbs) payload and self-loading shovel, it features a permanent 4x4 Compen© drive and a joystick in the driver's cab that controls all movements. It can also be equipped with a second seat for a passenger. Perfect for work in urban development, refurbishments or minor civil engineering projects. With its hydrostatic transmission, maximum comfort and safety are assured. Thanks to the transmission brake, it prevents the machine from moving under its own weight on slopes, without you even touching the brake pedal. Technical data General Unloading system - Frontal Chassis - Rigid Water hopper capacity - 700 l Level hopper capacity - 960 l Heaped hopper capacity - 1250 l Transmission - Hydrostatic Engine Brand - Kubota Model - V1505-E4B Power - 18.5 kW Torque - 92,6@1700 No. of cylinders - 4 Emissions - Stage V - EPA Tier 4 Noise level - 101 dB(A) Driving Max. speed - 18 Km/h Maximum gradient - 35 % External turning radius - 4190 mm Traction - 4x4 Compen® Tyres - 10.0/75-15.3 Hydraulic system Main pump - - Hydraulic circuit - 20 l/min Working pressure - 180 bar Deposit capacity Fuel - 40 l Hydraulic system - 40 l Brakes Service - Sealed, multi-disc Parking - Sealed, multi-disc
