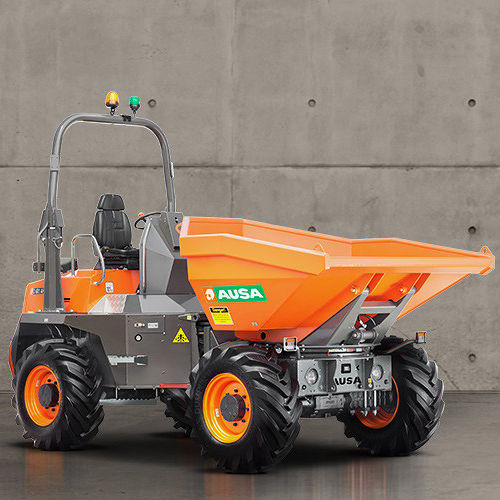

Rubber-tired dumper D601AHG

dieselswivel-skiparticulated-chassis

Cost-effective, safe and high-tech. It has a 180-degree swing skip and 6-ton (13,200 lbs) payload and hydrostatic transmission for maximum comfort and safety. With the D601AHG dumper, you will have an efficient and environmentally-friendly dumper. Equipped with the ECO Mode system as standard, which automatically regulates the machine's RPM at low speeds, and the optional Smart Stop feature, which switches off the engine when it is not in use, you will significantly improve fuel consumption, maintaining low CO2 emissions. You will also have an exceptionally safe system. It features a new Hill Holder system, which automatically engages the brake when you take your foot off the accelerator at speeds close to zero. Imagine how easy it will be to manoeuvre on any slope! Additionally, a digital display is built into the driver's console, where you will find all of the real-time information about the machine, such as the speed, RPM, fluid levels and alarms. Technical data General Unloading system - Rotating Chassis - Articulated Water hopper capacity - 1665 l Level hopper capacity - 2455 l Heaped hopper capacity - 3154 l Transmission - Hydrostatic Engine Brand - DEUTZ Model - TD3.6 L4 Power - 55.4 kW Torque - 330@1600 No. of cylinders - 4 Emissions - Stage V Noise level - 101 dB(A) Driving Max. speed - 25 Km/h Maximum gradient - 45 % External turning radius - 5900 mm Traction - 4x4 Tyres - 405/70-20 Hydraulic system Main pump - 25 cc gear pumps Hydraulic circuit - 50 l/min Working pressure - 180 bar Deposit capacity Fuel - 69 l Hydraulic system - 60 l Brakes Service - Hydraulic, sealed, multi-disc Parking - Negative, sealed, multi-disc
