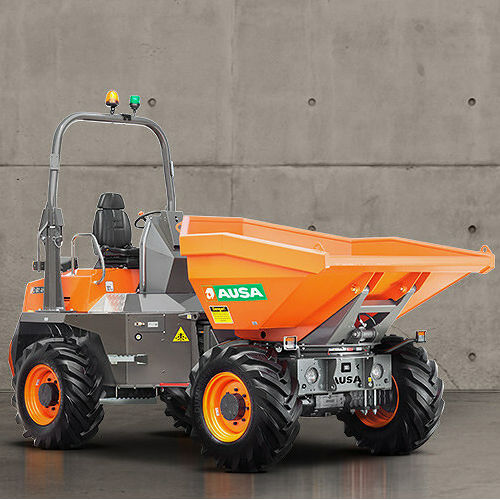

Rubber-tired dumper D601APG

dieselswivel-skiparticulated-chassis

Cost-effective, safe and high-tech. It has a 180-degree swing skip and 6-tonne (13,200 lbs) payload and a torque converter transmission for quicker power and speed. With the D601APG dumper, you will have an easy to maintain machine. Thanks to the location of all its components the dumper will be stopped for maintenance during minor times. Optionally, it can be featured with Smart Stop, which switches off the engine when it is not in use, so it significantly improves fuel consumption, maintaining low CO2 emissions. Additionally, a digital display is built into the driver's console, where you will find all of the real-time information about the machine, such as the speed, RPM, fluid levels and alarms. Technical data General Unloading system - Rotating Chassis - Articulated Water hopper capacity - 1665 l Level hopper capacity - 2455 l Heaped hopper capacity - 3154 l Transmission - Torque converter Engine Brand - Deutz Model - TD3.6 L4 Power - 55.4 kW Torque - 340@1500 No. of cylinders - 4 Emissions - - Noise level - 101 dB(A) Driving Max. speed - 28 Km/h Maximum gradient - 45 % External turning radius - 5900 mm Traction - 4x4 Tyres - 405/70-20 Hydraulic system Main pump - 23 cc gear pumps Hydraulic circuit - 46 l/min Working pressure - 180 bar Deposit capacity Fuel - 69 l Hydraulic system - 60 l Brakes Service - Sealed, multi-disc Parking - Negative
