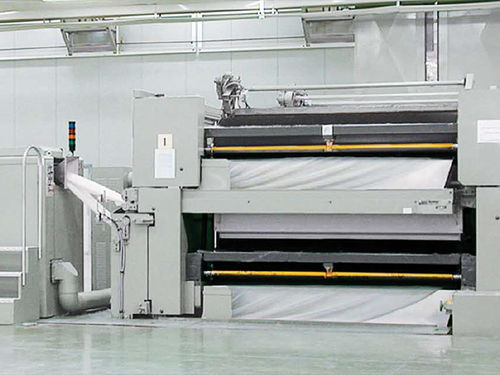

Cotton carding machine OCTIR-DRAGON MULTITRAVE SEMI WORSTED

for synthetic fibers

Wool Synthetic fibers Mohair Advantages: ■ Breast of large diameter with 5 workers / strippers: More workers allow a more gradual process of the fibers, that results in less fiber breakages and damages. ■ For the cards processing wool and mohair a new design of the de-burring system with 3 burr beaters (1st on the feeding unit), bigger Morel cylinders. ■ (650 mm instead of Ø 500 mm) and with an easy removal of brush cylinders (from the top without opening the card): Larger morel cylinders increase the cleaning and deburring capacity and produce more clean tops. ■ New design of the system for dust suction – the new chutes are totally integrated in the covers of the main drum: New chutes improve the efficiency of the suction of dust and exhaust air and simplify the opening of the card covers. ■ Feeding cylinders with bushes with needles for wool and with 6 feeding cylinders for synthetic fibers: this allows more control and care of the fibers means less breakages and damages and longer final average fiber length in the tops. ■ For wool double transport points on the opening cylinder: Increase the throughput and increase the blending action. ■ For synthetic double delivery doffers to increase the production. ■ New drives with single AC motors with inverters for main functions: To have a fine set up of the speeds and reach the best performance of the carding set. ■ New can coiler: Easier to manage, requiring less cleaning and maintenance. ■ New side doors (no more rails on the floor): For an easy and quick access to the card parts for cleaning and maintenance.
