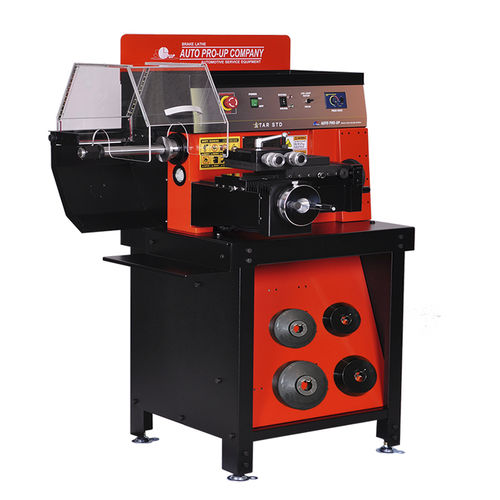

Brake drum lathe DBL-STAR STDmanualhorizontalfor brake discs
Add to favorites
Compare this product
Characteristics
- Control type
- manual
- Spindle orientation
- horizontal
- Applications
- brake drum, for brake discs
- Performance
- powerful
- Diameter
Max.: 580 mm
(22.83 in)Min.: 0 mm
(0 in)- Spindle speed
Max.: 110 rpm
(691.15 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Technical Specifications
• - Electrical Requirement: 110/220V, 1 Phase, 50/60Hz
• - Spindle Motor: Geared One (1) Horsepower up to 110RPN/1
• - Feed Motor: Two (2) Geared AC Motor
• - Arbor Shaft Diameter: 30mm (35mm is also available as an optional)
• - Max. Rotor Diameter: 420mm
• - Max. Rotor Thickness : 50mm
• - Max. Drum Diameter: 580mm
• - Max. Drum Depth : 140mm
• - Max. Rotor/ Drum Weight: 70kg (154lbs)
• - Net Weight: 250Kg / Gross Weight: 265Kg
• - Packing Dimensions : W 1,100 D 840 H 1,500
Standard Export Carton Packing
Premium Features
.The Best-Selling Combination Bench Lathe (for Rotor & Drum) .High-Quality Component that is made in Korea .Full Adapter Kit
.Precise Machining by Powerful 1HP Motor
.Fully Adjustable Feed Rate
.Clear LED Safety Shield & Drum LED Worklight
