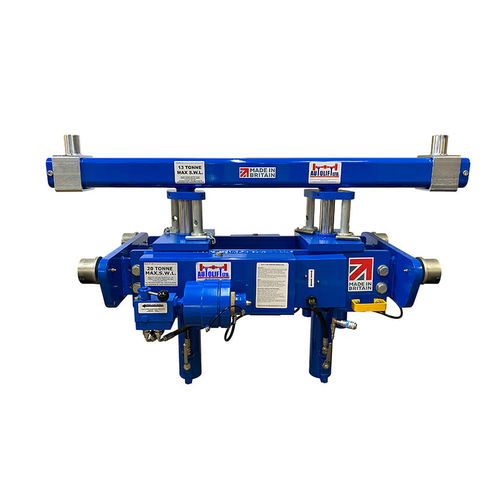

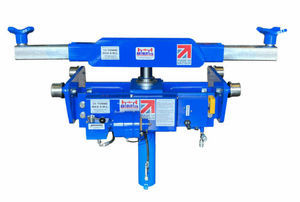

Fixed spreader beam SB-TR-FIXED

single-girderindustrialfor heavy loads

13 Tonne Fixed Spreader Beam for Twin Ram Jack *Jack not included* Designed to accommodate vehicles with independent front suspensions – particularly buses and coaches. This Spreader Beam also enables you to reach jacking points beyond the width of your pit. Any Autolift adapters can be used with this Spreader Beam. We also offer Distributor rates if you wish to become a re-seller please contact us for more information. Dimensions; Pit must be a minimum of 800mm wide for rams to be able to spread far enough apart to fit the Spreader Beam on. Slots to fit onto the rams are 500mm apart (centre to centre of slots). When sliders are closest to the centre the width is 600mm (centre to centre of spears). When sliders are at their widest the width is 1260mm (centre to centre of spears). 340mm clearance required from bottom of angle/channel to top of dish head adapter on top of the spears on the spreader beam. Warranty - Designed and manufactured in accordance with Machinery Directive 98/37/EC and engineering standard: BS EN 1494:2001. Complies with EC requirements and is covered by a 5 year warranty.
