Portable thickness gauge QNix® 4 series
coatingdigital displayeddy current

portable thickness gauge
portable thickness gauge
portable thickness gauge
Add to favorites
Compare this product


Characteristics

Type
portable
Applications
coating
Technology
digital display, eddy current, magnetic
Calibration
automatic calibration
Other characteristics
ultra-rugged, with external probe
Measuring range

Max.: 1,000 µm

Min.: 0 µm

Description

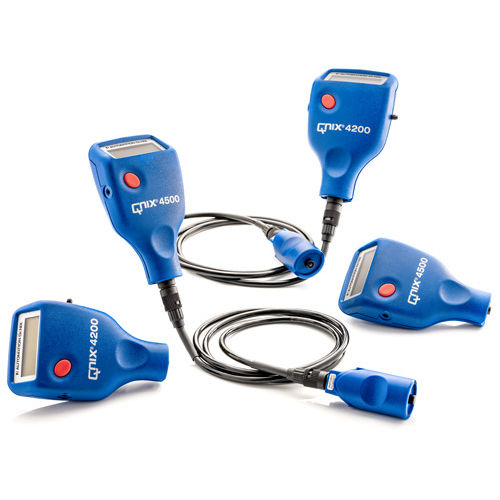

QNix® 4500, QNix® 4200 QNix® coating thickness gauges: fast, precise and easy to use The 4000 series QNix® coating thickness gauges deliver precise and quick measurement results, are easy to use and extremely robust. Are you looking for a universal coating thickness gauge that has proven itself time and again? Can you forego measured value memory or software-supported evaluation in your area of application? Then the QNix® 4200 (for measurements on Fe) or the QNix® 4500 (for measurements on Fe and NFe) is the right coating thickness gauge for you. Reliable measurement results on Fe and NFe metals Thousands of users around the world have used the coating thickness gauges from the 4000 series for years. As a user you can also benefit from these successful models. The QNix® 4200 gives you reliable measurement results on steel and iron (Fe). The QNix® 4500 lets you take measurements on steel, iron (Fe) and non-ferrous metals (NFe) like aluminium, zinc, copper and brass. Broad range of applications and easy to use QNix® devices from the 4000 series are available in a variety of different versions, such as with an integrated or cable probe or with an extended measuring surface of up to 5 mm. This lets you cover a very broad range of applications if need be. We want to make your work easier as a user. That is why all QNix® coating thickness gauges function according to our easy-to-use principle: simply position, measure and read. Meets the following standards: DIN EN ISO 2808 ISO 2178 ASTM B 499 ASTM D 7091 ISO 2360 (only QNix® 4500) Operation Automatically turns on and off Operation with one hand and one button Only one function key
