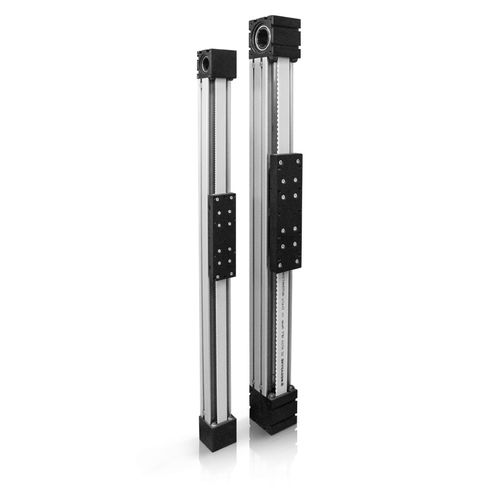

Timing belt linear unit ML series

profileelectricprecision

Linear Units Belt Drive Linear Units Always suitable for the application characteristics The belts used are made of polyurethane with steel strands and the tooth is coated to reduce noise at high speeds. The belt slides inside guides slots created on the profile that protect the internal mechanics from dust or processing residues. A steel sheet, passing inside the trolley, allows additional protection to the unit. (High Protection versions). Belt maintenance operations can be carried out easily. Belt replacement and tensioning can be carried out without disassembling the unit from the application. The motion can be transmitted directly by fixing the motor shaft with shrink discs or conical bushes or with protruding shafts and coupling joints. Planetary gearboxes are available, having high efficiency and precision, to optimize motor performance based on the load to be moved. A wide availability of accessories allows the creation of single or multi-axis solutions. Wide choice of high performance gearboxes, Servo Stepper or Brushless motors, variety of return shafts and appropriate interface plates. Furthermore, there is good accessibility for periodic lubrication. The return head is equipped with a tensioning system. Any adjustment is possible without removing the load from the trolley Configurations Cartesian The drive head is equipped with zero-play pulley with hole for shrink disk or conical bush.
