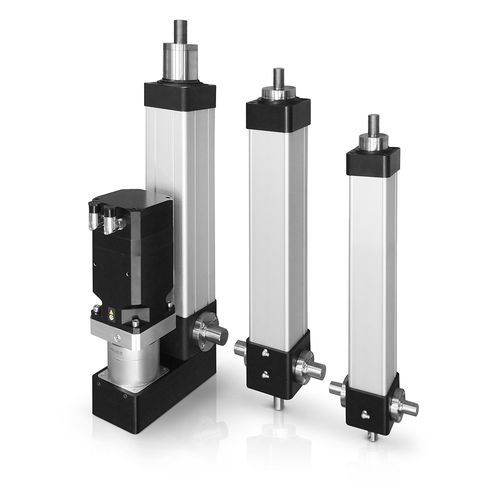

Linear actuator Mech Line - Force - Pluselectricstepperball screw
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- stepper, ball screw
- Motor
- with brushless DC motor
- Norms
- ISO 15552
- Applications
- for medical applications, food
- Other characteristics
- with parallel motor, high-speed, for heavy loads, control, high-speed, wide, flange-mounted
- Stroke
Min.: 50 mm
(1.969 in)Max.: 1,500 mm
(59.055 in)- Force
Min.: 2.5 kN
Max.: 213.7 kN
- Speed
Min.: 292 mm/s
Max.: 2,167 mm/s
Description
Wide range of solutions for each electrical application.
Various system-modulated solutions for speed and payload based on situations, with thrusts greater than 200kN, high duration and electronic control.
In-line or parallel motorization options for limited footprints with the insertion of quality gearboxes.
Highly reliable and widespread cylinders, a consolidated product with an excellent price-performance ratio.
They are available on four sizes, 25 - 32 - 50 - 63, using sphere recirculation screw movement, and are equipped with an anti-rotation device.
They are ISO 15552 compatible.
They can be powered using Stepper or Brushless motors, also with closed-ring control.
Motor power may be direct or delayed.
Catalogs
General Catalog 2019
96 Pages
AW Short Catalog IKO 2021
28 Pages
