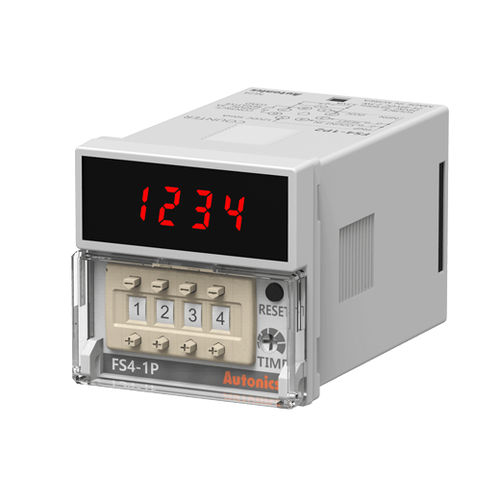

5-digit counter FS Series

preset

The FS series digital counters feature counting speeds of 1 cps, 30 cps, 2 kcps, and 5 kcps and decimal point display function. Count-up and count-down operation modes are available for diverse applications. The 8-pin plug type connection allows easy installation and maintenance. The FS series counters are available in 4-digit and 5-digit models. Main features Counting speeds : 1cps/30cps/2kcps/5kcps Switch between voltage input (PNP) and no-voltage input (PNP) using DIP switch Operation modes : count-up, count-down Decimal point display function (fixed decimal point) 10 year memory protection (using non-volatile semiconductor) Output model types : single preset, indicator only Power supply - 100-240VAC 50/60Hz (AC type) - 24VAC 50/60Hz, 24-48VDC (AC/DC universal type)
