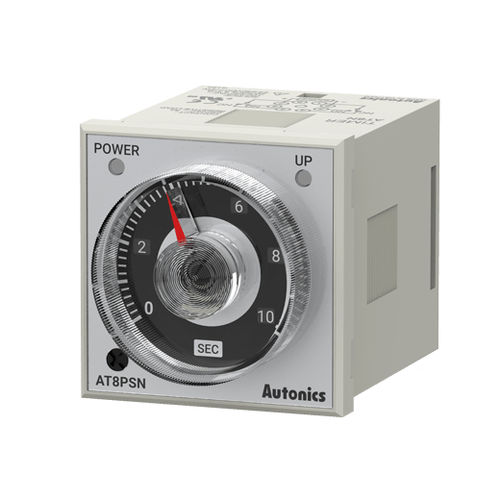

Analog timer AT8PSN/AT8PMN Series

off delayprotection

The AT8PSN/AT8PMN series power-off delay analog timers are ideal for circuit protection and system restart in case of power failures. Simple time configuration and status monitoring is possible with the analog dial. Time range can be set in seconds or minutes depending on the model type. Standard DIN W 48 x H 48 mm size provides convenient installation. Main features Ideal for circuit protection and system restart in case of power failures Time setting range - AT8PSN : 0.05 to 10 seconds - AT8PMN : 0.05 to 10 minutes Simple time configuration and status monitoring with analog dial Standard DIN W48×H48mm size Power supply - 100-120VAC 50/60Hz (AC type) - 200-240VAC 50/60Hz (AC type) - 100/110VDC (DC type) - 24VAC 50/60 Hz, 24 VDC (AC/DC universal type)
