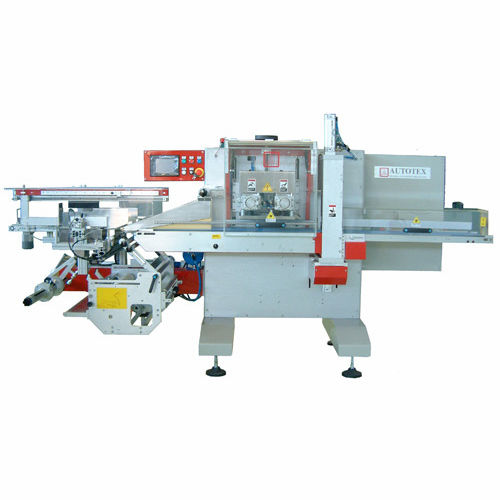

Horizontal bagging machine PILLOWPACK

automaticconstructionfor the textile industry

PILLOWPACK - New concept bagging machine New concept bagging machine for the packing of all kinds of textiles and other items, starting from a roll of flat film. Features: - Machine with loading direction from left to right. - Steel structures assembled on height-adjustable feet. - Canteen lever style construction in order to achieve machine sturdiness and easy access to the mechanical parts. - Longitudinal seal carried out by two sets of 120 mm diameter wheels; first set cold for the pulling and second set heated for the sealing. - Hand wheel for the setting of the wheels ‘ group height in respect to the product height. - Automatic opening of the wheels when the machine is halted. - Pneumatically controlled intermitted jaw 300 mm wide to perform the 9 mm. wide transverse seal, complete of pneumatically controlled knife. - Low pressure safety system on jaws in case a product is out of position. - Main machine drive by means of a brushless motor controlled through a PLC. - Self-centering film roll holder for a maximum film width of 600 mm. - Motorized rubber roller for efficient film unwinding controlled by an inverter. - Calander roller assembly for film passage complete of perforator. - Product unload conveyor belt 1 mt. long. - Safety guards respecting the EC standards. - Color touch screen control panel with 50 memories for the easy adjustment of the machine parameters such as speed, heating jaws and fin wheels, bag length, etc. - Adjustable forming tunnel.
