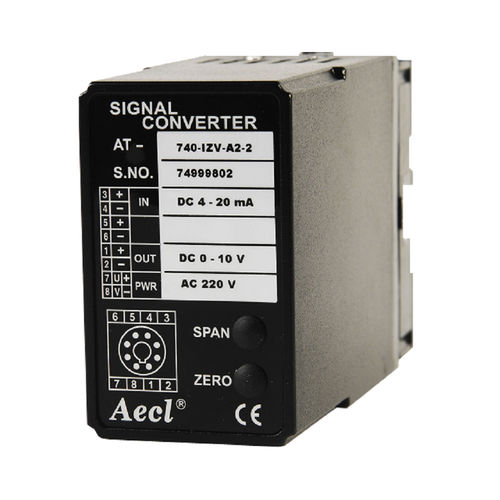

Signal converter AT-740 VZV VZI IZV IZI

DIN rail

Dear visitor: Aecl is looking for a partnership for Distributor and system integrator. *If you have any query, please contact us by Direct Industry or by email contact@aecl.com.tw Aecl AT-740 VZV, VZI, IZV, IZI - DC Converter [Features] ● Versatility of Input and Output Ranges. ● Plug-in Socket Structure and DIN Rail Mounting. ● High Reliability, Lasting Durability, Low Cost and Small Sized. [Specification] ● Accuracy: ± 0.1% FS. (at 23°C) ● Linearity: ± 0.1% FS. ● Response Time: 0.2 sec (0 - 90% ) ● Temp Coefficient: ± 0.015% FS / °C ● Operating Temp: -5 ~ +55°C ● Operating Humidity: 0 - 90% RH ● 2-Wire Excitation Power: DC 24 ~ 28 V ● Insulation Resistance: 　a) ≥ 100 MΩ with 500 VDC 　b) Non-Iso. Type (Input, Output / Power) 　c) Iso. Type (Input / Output / Power) ● Dielectric Strength: AC 1500 V, 1 min. 　a) Non-Iso. Type (Input, Output / Power) 　b) Iso. Type (Input / Output / Power) ● Case Material: Case is ABS, Base is Bakelite ● Zero and Span Adjustment: ± 20 % FS. ● Power Consumption: 4 VA
