Forklift truck ramp DG series

for docksfor trucksfor warehouse

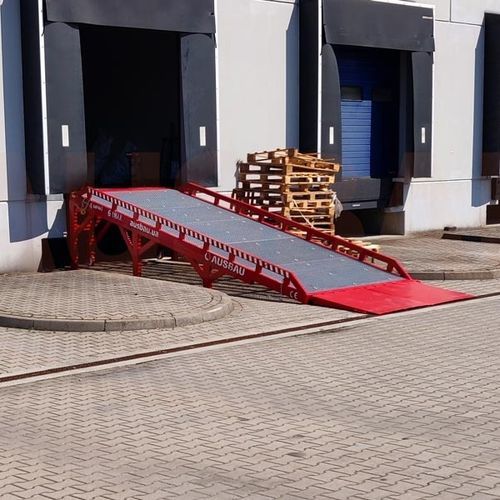

Dock access ramp AUSBAU-DG provides forklift access from the warehouse to the outside and increases the efficiency of loading operations. It's the most affordable way to get your forklift from the warehouse to the ground and back. This loading and unloading trestle is made of durable steel, adapted to the width of the door opening, and is as strong as normal concrete. In addition, it can be removed and moved around the warehouse or out of the warehouse when needed. The Warehouse-Earth entrance ramp is ideal for rented space and special warehouses. In the production of ramps AUSBAU-DG used steel grades E 235-B (Fe 360-B) and E 235-C (Fe 360-C) in accordance with ISO 630:1995. Welding is carried out by automatic and semi-automatic machines in a protective gas environment. Technical characteristics: - Ramp load, kg - 6000 / 8000 / 10000; - Total length of the ramp, mm - 6300 / 8300 / 10300 / 12300; - Total width of the ramp, mm - 1630 / 2120; - Width of the roadway, mm - 1500 / 2000; - Length of the sloping part, mm - 6000 / 8000 / 10000 / 12000; - Length of tilting ramps, mm - 1000; - Length of the ramp, mm - 300; - Working height, mm - 1200; - Safety rail height - 180 mm; - Number of folding ramps - 2; - Angle of inclination of the ramp - 5,74 / 6,89 / 8,63 / 11,54; - Material - S235; - Covering - grating. Guarantee period: 18 months. Worldwide service. Production time: 15-45 calendar days. Stock availability. CE conformity.
