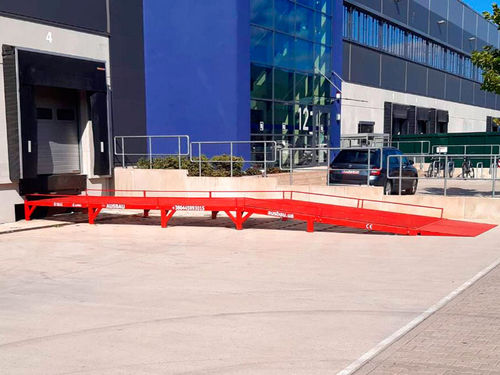

Forklift truck ramp VR series

for docksfor trucksfor warehouse

Levelling ramps for LCV AUSBAU-VR Allows reaching vans floor from dock gates of logistic centers and plant warehouses.This is special designed truck ramp for loading/unloading commercial vehicles at standard dock gates of modern warehouses. Our equipment helps to eliminate difference in heights of commercial vehicles (500-700 mm) and height of dock gates, dedicated for big semi-trailers (1100-1200mm ). Van arrives to the dock gate and after riding on the AUSBAU-VR ramp, it becomes higher, and its loading height (distance from ground to van floor) becomes similar to dock gate height, which allows to make loading/unloading just from warehouse. Technical specifications of the ramp AUSBAU-VR: - Load, kg - 5000 / 8000; - Total length of the ramp, mm - 11000 / 12000 / 13000; - Total width of the ramp, mm - 2450 / -6100; - Ramp width, mm - 2350 / -6000; - Length of sloping part, mm - 5000 / 6000 / 11000 / 13000; - Length of sloping part, mm - 1000; - Working height, mm - 500-700; - Safety guard rail height - 180 mm; - Number of folding heights - 2; - Ramp slope angle, mm - 2.42 / 5.74 / 6.32; - Material - S235; - Covering - grating / expanded metal. Warranty period: 18 months. Worldwide service. Production time: 15-45 calendar days. Availability in stock. CE marking.
