Dock loading ramp ECO series

for forklift trucksfor warehousefor utility vehicles

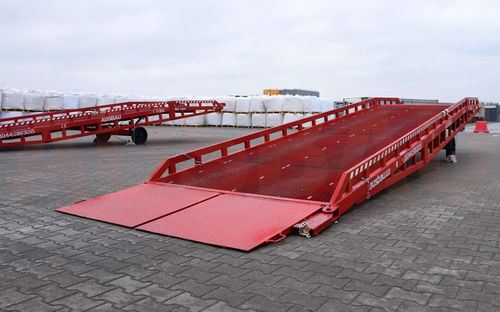

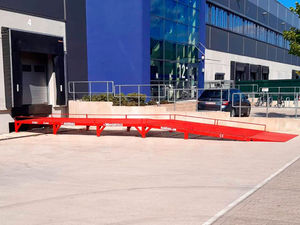

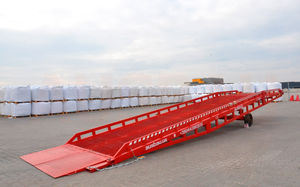

Mobile ramp AUSBAU. Weight capacity 6, 8, 10, 12 tons and more. Height is adjusted by manual hydraulic pump from 90 cm to 165 cm. Mobile ramps save your time and labor resources during loading/unloading for/from truck and railway wagon. Anti-slip steel grating provides superior traction for forklift tires. Length from 9 to 13m, driving width from 1,6 to 2,7 meters. More details about mobile ramp AUSBAU, video and photo on our website: av-exim.com id:5DdZxN Technical characteristics of the mobile loading ramp: - Loading capacity of the ramp, kg - 6000 / 8000 / 10000 / 12000; - Total length of the ramp, m - 9.0 / 9.5 / 10.5 / 11.2 / 12.0 / 13.0; - Length of sloping part, m - 7,0 / 7,5 / 8,2 / 8,9 - Length of the horizontal part, m - 0,7 / 2,2 / 2,4 / 2,5 / 2,8 - Length of folding ramps, m - 1.0 - Length of ramp, m - 0,3; - Total width of ramp, m - 1.73 / 2.13 - Driveway width, m - 1.6 / 2.0 - Max. working height, m - 1.65; - Minimum working height, m - 0,9; - Number of wheels -2; - Wheels - polyurethane / solid rubber / pneumatic; - No. of folding tailgates, pcs. - 2 - Covering: Latticeice decking; - Ramp accessories: ramp coupling, chains with hooks 2 pcs., chocks 2 pcs., hydraulic pump, pump hand crank, two hydraulic cylinders + high-pressure hoses. Warranty period: 18 months. Worldwide service. Availability in stock. CE conformity. How mobile ramp works: Forklift lift rear side of the mobile ramps (there is special place for forklift's palm) and move ramp to truck or railcar. Using manual hydraulic, pushing lever of the pump, worker set ramp on required height (minimum 900 mm, maximum 1650 mm) – height of truck body from the ground level.
