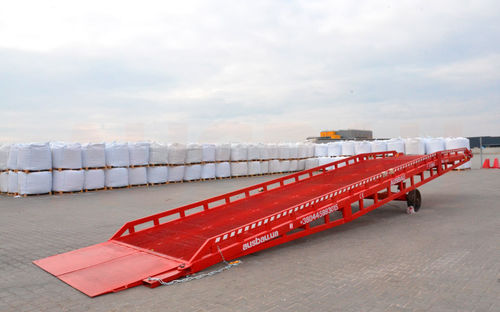

Dock loading ramp LNG series

for forklift trucksfor warehousefor utility vehicles

Mobile loading ramp AUSBAU from the manufacturer. Large sloping area, anti-slip surface, height adjustment (900 to 1650 mm). Saves you time and money when loading and unloading a variety of goods. Standard models with load capacities of 6, 8, 10 and 12t. We produce mobile loading ramps of any dimensions to order. For detailed information about AUSBAU loading trolley on our website av-exim.com. How mobile loading ramps work: Forklift lift rear side of the movable dock ramp (there is special place for forklift's palm) and move ramp to truck or railcar. Using manual hydraulic, pushing lever of the pump, worker set ramp on required height (minimum 900 mm, maximum 1650 mm) – height of truck body from the ground level. Technical characteristics of the loading ramp: - Loading capacity of the ramp, kg - 6000 / 8000 / 10000 / 12000; - Total length of the ramp, m - 9.0 / 9.5 / 10.5 / 11.2 / 12.0 / 13.0; - Length of sloping part, m - 7,0 / 7,5 / 8,2 / 8,9 - Length of the horizontal part, m - 0,7 / 2,2 / 2,4 / 2,5 / 2,8 - Length of folding ramps, m - 1.0 - Length of ramp, m - 0,3; - Total width of ramp, m - 1.73 / 2.13 - Driveway width, m - 1.6 / 2.0 - Max. working height, m - 1.65; - Minimum working height, m - 0,9; - Number of wheels -2; - Wheels - polyurethane / solid rubber / pneumatic; - No. of folding tailgates, pcs. - 2 - Covering: Latticeice decking; - Ramp accessories: ramp coupling, 2 pcs. hook chains, 2 pcs. wheel chocks, hydraulic pump, pump hand crank, two hydraulic cylinders + high pressure hoses. Warranty period: 18 months. Worldwide service. Stock availability. CE conformity.
