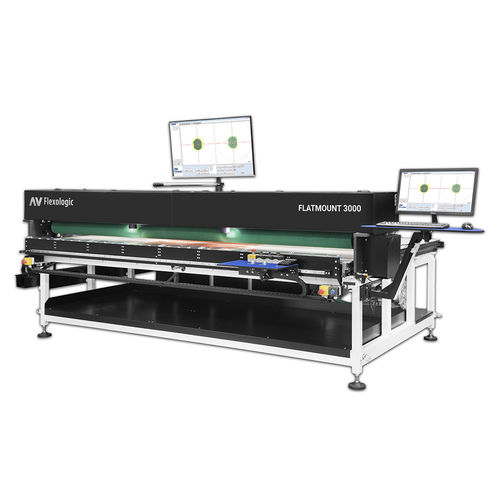

Flexo plate mounting machine Flatmount

Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 2
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 3
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 4
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 5
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 6
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 7
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 8
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 9
Flexo plate mounting machine - Flatmount - AV FLEXOLOGIC - image - 10
Add to favorites
Compare this product


Characteristics

Applications
flexo plate

Description

- A flatbed mounting machine for the corrugated postprint industry - Easy to use machine that mounts photopolymer printing plates directly onto a mylar - Highly customizable with various options The Flatmount is equipped with a computer that controls the motorized positioning of the cameras, both the x- and y-direction. The locations of the mounting marks are entered into the computer upon which the Flatmount automatically finds the correct position to ensure the best mounting accuracy. The images of the cameras overlay system are displayed on the screen and the operator can set the frame of reference in any position he prefers. The operator places the plate using the laser pointers. Snapshots of the mounting position can be taken and displayed on the monitor to enable the operator to mount image on image. An important feature is that the successfully mounted plate locations are saved into the computer. These records can be recalled any time for future reference or as a double-check option.The mounting table has various special applications to simplify the mounting even more. The machine is made of a sturdy steel frame with trespa top and a so-called Matthews/Bobst locking system. The Overlay System enabling easy color to color registration HD Ethernet Motorized Cameras with zoom up to 170x enable highest quality register mark image Motorized Cameras operated directly from the computer interface Patented Digital Calibration of the Camera Beam to achieve highest accuracy Laser pointers for quick positioning Quality control (optional) Compatible with ESKO PlatePatcher and Hybrid Patchplanner software (optional)
