Robotic materials handling system RoboSLEEVE

process

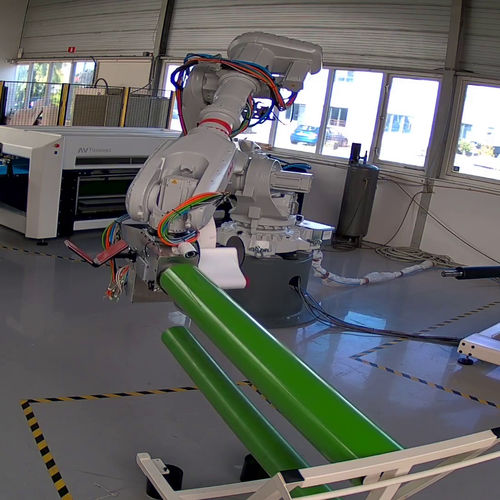

The RoboSLEEVE is a robotic sleeve handling system. The RoboSLEEVE picks-up the first taped sleeve from the Tech Cart and then, within seconds it loads it on the mandrel of the mounting machine. When the plate mounting process is over, the RoboSLEEVE unloads the mounted sleeve and places it back on the Tech Cart. The mounting process is safer and faster than ever! Eliminates manual sleeve loading/unloading Safe sleeve and adapter handling Saves time and effort Eliminates sleeve damage Saves costs from buying new sleeves PRODUCT BROCHURE real time video of robosleeve RoboSLEEVE features 1 Fully automatic The RoboSLEEVE will load the first taped sleeve of the Tech Cart onto the mandrel of the mounting machine. When the sleeve is mounted, it will place the sleeve back on the cart and pick-up the next sleeve 2 Multiple sleeve stork sizes The RoboSLEEVE will make a tool change according to the inner diameter of the printing sleeve. Compatible for stork sizes from 240-1240 3 Adapter station The adapter station is used to store all the adapters necessary for the different printing jobs and presses. The RoboSLEEVE picks-up an adapter and loads it on the mounting machine. Then, it continues with the first sleeve of the Tech Cart 4 Safety fence The RoboSLEEVE is designed based on safety regulations including a safety fence of 2 meters height with an HMI console placed outside the fence. 5 Tech Cart The RoboSLEEVE comes with a Tech Cart for up to 10 sleeves capacity. The Tech Cart provides safe and effortless transport for the sleeves 6 HMI console The HMI console is used to set up jobs and start the loading and mounting process.
