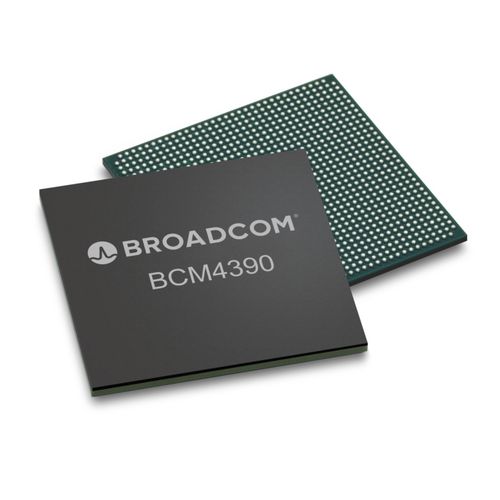

SoC system-on-chip BCM4390

The BCM4390 is a low-power, highly integrated Wi-Fi 7 and Bluetooth 5.4 combo chip optimized for mobile handset applications where high performance, low latency, low power consumption and small solution size are key requirements. The BCM4390 system-on-a-chip contains a simultaneous dual-band (SDB) 2×2 IEEE 802.11be-compliant radio, a dual-core Bluetooth (BT) 5.4 radio, and a dedicated scan core that enhances Bluetooth and WLAN system operation. The device includes support for 160 MHz wide channels, 5/6GHz band support and 4K-QAM modulation. Features Support for 2-stream Wi-Fi 7 160 MHz channel bandwidth Dual radio that supports simultaneous 2x2 2.4GHz and 2x2 5/6 GHz operation 3.2 Gbps PHY rate 4096-QAM modulation Integrated Bluetooth Classic and Low-Energy support Integrated Thread and Zigbee support Client multi-link operation (MLO) Compliance to IEEE and WFA Wi-Fi 7 standards, as well as the Bluetooth 5.4 standard and future draft specification such as Channel Sounding SpeedBooster Applications Low-power mobile devices Tablets
