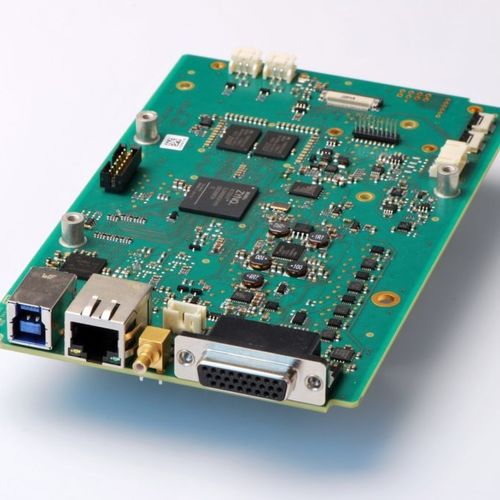

OEM diode array spectrometer electronic module AS-7010 series

The AS-7010 is the electronic platform base for Avantes’ EVO spectrometer models. It is equipped with a powerful Xilinx Zynq 7010 microprocessor. It combines the software programmability of a processor with the hardware programmability of an FPGA, resulting in unrivalled levels of system performance and flexibility. The generous 100 Mpixel memory enables onboard storage of spectra and custom programming. As it is equipped with two different AD convertors, optimum performance for each detector type is assured. The AS-7010 comes with the versatility of 2 communication ports: a high-speed USB3.0 and a GigaEthernet port. Also on board is the HD26 digital I/O connector with 13 programmable digital I/O ports, 2 analogue out-ports and 2 analogue in-ports. The connector is compatible with the AS-5216 I/O connector.
