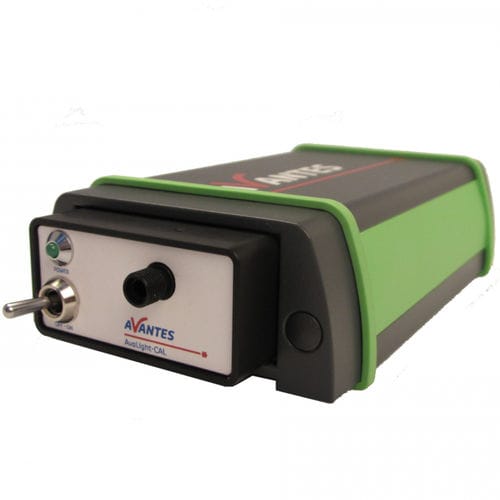

Discharge lamp light source AvaLight-CAL (-Mini)

UVNIRcalibrated

The AvaLight-CAL-xxx is a spectral calibration lamp, available in Mercury-Argon (253.6-922.5 nm), Neon (337-1084.5 nm), Argon (696.5-1704 nm) Zinc (202.5-636.2 nm), and Cadmium (214.4-643.8 nm) versions. The major lines including their relative intensity and structures are shown below. The standard SMA-905 connector supplies an easy connection between the lamp and optical fibres, making the AvaLight-CAL-xxx a low-cost wavelength calibration system for any fibre-optic spectrometer. AvaSoft-Full spectroscopy software includes an automatic recalibration procedure. The AvaLight-CAL-Mini, AvaLight-CAL-AR-Mini, AvaLight-CAL-Neon-Mini all come in the Mini-housing and are equipped with a connector at the rear enabling to switch the unit on/off remotely with a TTL signal. The AvaLight-CAL can also be delivered in rack-mountable version, to be integrated into Avantes 19” Rack-mount or the 9.5” desktop housing. The PS-12V/2.08A power supply should be ordered separately. Benefits Compact calibration light source Low cost Available in a variety of wavelength ranges (from UV to NIR)
