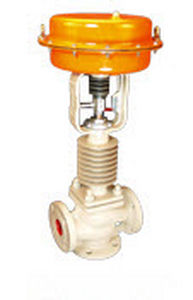

Globe valve PV-5116A/CSF seriespneumatically-operatedfor controlregulating
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatically-operated
- Function
- for control, regulating
- Media
- for hot water
- Number of channels
- 3-way
- DN
Min.: 20 mm
(0.787 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 25 bar
(362.6 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 420 °C
(788 °F)
Description
SPECIFICATIONS :
Size 20 mm (3/4) to 100 mm (4).
Unified Flanges As per ANSI CI. 150 and PN 16.
Pressure Rating As per ANSI CI. 150,CI. 300, PN 16 & PN 25.
Gland Packing Glass filled Graphited Teflon for 420OC with Cooling Finned Bonnet.
Design Standard ASME B16.34
Leakage As per ASME 16.104 CI.IV(0.01% of Kv)
Face to Face As per DIN-3202.
Testing Standard As per ISA S 7501.
Type of Plug On-Off or Linear.
Seat Screwed type replaceable.
Body & Bonnet Material CS-ASTM A216 WCB (DIN 1.0619 GS-C 25).
SS-ASTM A351CF8M (DIN1.4410)
(G-X10 Cr.Ni MO189) SS-ASTM A351CF8 (DIN1.4301)
Plug Material SS AISI 420/316.
Seat Ring SS AISI 420/316.
Spindle 410/316 Ground, Burnished And Hard Chromed.
Studs ASTM A193 Gr. B7.
Hex. Nuts ASTM A194 Gr. 2H.
Body Packing Cr. Ni Foil coated with graphite.
Rangeability Linear 50:1
Fluid Hot Thermic Fluid, Hot Water, Hot Steam, etc.
Note 5116A are Metal Seated Valves.
