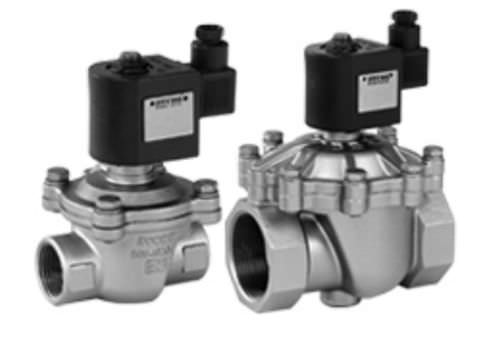

Pilot-operated solenoid valve 9230 D2-wayNCair
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- air, for water, hydraulic
- Other characteristics
- membrane
- DN
Max.: 50 mm
(1.969 in)Min.: 10 mm
(0.394 in)- Voltage
230 V
- Temperature
Max.: 180 °C
(356 °F)Min.: -5 °C
(23 °F)- Pressure
Max.: 6 bar
(87 psi)Min.: 0 bar
(0 psi)
Description
Sizes: 10mm (3/8") to 50mm (3")
End Connections: Standard-BSP, Optional-NPT.
Construction-Body: Upto 20mm (3/4") Brass forged IS 6912, above in SS ASTM
A351 Gr. CF8 or CF8M.
Diaphragm-Seat: Standard-Nitrile (Buna 'N')
Optional-Neoprene, Viton, EPDM.
Differential Pressure: 0 to 6 bar.
Temperature of fluid: -5°C to 80°C.
Coil Voltage: Standard-230-volts, 50Hz AC.
Optional-Any Standard AC/DC voltage range.
Application: Gas burning equipments, autoclaves, oil centrifuge plants, vacuum plants. Pump seal water application, low pressure water circulation system, solar heating system, gas generator & other.
